Dynamically Extracting .dacpacs With #Powershell

Feb 3rd, 2015
by Mike Fal.
3 comments

As DBAs, backing up our databases isn’t quite enough.  We also want to back up our schemas for additional protection.  And while we could go through some complex scripting to actual write out all those schema objects, Microsoft has given us a handy tool with SQL Server Data Tools and Visual Studio to capture these schemas.

I’m talking about sqlpackage.  I hadn’t used this before I got to my current job, but it really is a snap.  Using sqlpackage (in conjunction with managing your database through a Visual Studio project), you can easily deploy or script out database code changes.  You can also extract your schema with a few simple commands, like so:

sqlpackage.exe /action:extract /targetservername:localhost /targetdatabasename:dummy /targetfile:someawesome.dacpac

So this is great and all, but when you’ve got dozens or even hundreds of databases, you need a quick and efficient way to run this command.  Since this is a command line operation, Powershell becomes the natural way to do this.  Here’s a simple script that will allow you to extract all the user database schemas from a server:

#extract all your database schemas as dacpacs
$server = 'PICARD'

$dbs = Invoke-Sqlcmd -ServerInstance $server -Database tempdb -Query 'SELECT name FROM sys.databases WHERE database_id >4'

foreach($db in $dbs.name){
$cmd = "& 'C:\Program Files (x86)\Microsoft SQL Server\120\DAC\bin\sqlpackage.exe' /action:Extract /targetfile:'C:\dacpacs\$db.dacpac' /SourceServerName:$server /SourceDatabaseName:$db"

Invoke-Expression $cmd
}

Let’s look at two things in play here.  The first is the use of the ‘&’, which is the call operator.  This takes a string expression you create and then executes it.  In this case, we build out the expression with that operator.  Then we use item number two, Invoke-Expression, to run the expression we built.  The rest is pretty simple.

This is a quick and dirty version of it, but we could get a lot fancier.  In fact, Gianluca Sartori(@spaghettidba) has a very nice blog post where he provides a function to do this.  My own function (which looks pretty similar) goes a little something like this:

function Export-SQLDacPacs{
    param([string[]] $Instances = 'localhost',
          [string] $outputdirectory=([Environment]::GetFolderPath("MyDocuments"))
)

#get the sqlpackage executable
$sqlpackage = (get-childitem C:\ -Recurse | Where-Object {$_.name -eq 'sqlpackage.exe'} |Sort-Object LastWriteTime | Select-Object -First 1).FullName

#declare a select query for databases
$dbsql = @"
SELECT name FROM sys.databases
where database_id >4 and state_desc = 'ONLINE'
"@

#loop through each instance
foreach($instance in $Instances){
    #set processing variables
    $dbs = Invoke-Sqlcmd -ServerInstance $instance -Database tempdb -Query $dbsql
    $datestring =  (Get-Date -Format 'yyyyMMddHHmm')
    $iname = $instance.Replace('\','_')

    #extract each db
    foreach($db in $dbs.name){
        $outfile = Join-Path $outputdirectory -ChildPath "$iname-$db-$datestring.dacpac"
        $cmd = "& '$sqlpackage' /action:Extract /targetfile:'$outfile' /SourceServerName:$instance /SourceDatabaseName:$db"
        Invoke-Expression $cmd
        }
    }
}

Export-SQLDacPacs -instances 'PICARD'

What’s cool is with this is a function, we can now extend it and do some really cool things.  Remember that CMS lookup we used last week?  Let’s use it here:

$CMS=’PICARD’
$servers=@((dir "SQLSERVER:\SQLRegistration\Central Management Server Group\$CMS").Name)

$servers+=$cms
Export-SQLDacPAcs -Instances $servers

And now I have a script to extract all my user database schemas from all the instances in my enterprise.  How cool is that?  Now I can put this into an agent job or a Windows scheduled task and have a regular schema extract, giving me an extra layer of protection for my systems.

Am I Alive? SQL Connectivity Checks with #Powershell

Jan 27th, 2015
by Mike Fal.
10 comments

Inevitably, there will be the call from a developer or admin saying “I can’t connect to the MORDOR SQL Server!  Everything is terrible!  All is darkness and shadows!  HELP!”.  After explaining that one does not simply connect to MORDOR, I fire up SQL Server Management Studio and attempt to log in.  It’s not particularly onerous, but it takes time and can’t be particularly automated for more proactive connectivity checks.

The connectivity check, at the heart of it, isn’t really that complex.  Usually it’s just a case of connecting and running a simple select statement.  I’ve done this proactively in the past using a central management server and linked servers for all the instance in my environment.  While this works, it’s difficult to manage, automate, and isn’t very mobile.  Me being me, I turn to Powershell for a better way.

Test-SQLConnection

The function here is pretty simple: Loop through a collection of instance names and try to query the server name and TempDB creation time.  If I get a result set, then my connection test is successful.  If it errors out, then no connection.  Essentially, the test is whether or not my return set has a StartupTime (TempDB creation date) or not.  So now I can pass single instance or collection and test them all with the one function.

function Test-SQLConnection{
    param([parameter(mandatory=$true)][string[]] $Instances)

    $return = @()
    foreach($InstanceName in $Instances){
        $row = New-Object –TypeName PSObject –Prop @{'InstanceName'=$InstanceName;'StartupTime'=$null}
        try{
            $check=Invoke-Sqlcmd -ServerInstance $InstanceName -Database TempDB -Query "SELECT @@SERVERNAME as Name,Create_Date FROM sys.databases WHERE name = 'TempDB'" -ErrorAction Stop -ConnectionTimeout 3
            $row.InstanceName = $check.Name
            $row.StartupTime = $check.Create_Date
        }
        catch{
            #do nothing on the catch
        }
        finally{
            $return += $row
        }
    }
    return $return
}

Test-SQLConnection -Instances 'localhost'

Why do I return the TempDB creation date?  Well, a boolean value is easy enough to return, but I figure I could use more info to work with.  After all, if data comes back, then I know the connectivity is working.  So let’s do a little more.  By returning the TempDB creation date, I can find out if my instance restarted recently (or if it’s been up for a really long time).  This gives me a little more information to work with.

Extending the functionality

While calling this function adhoc is easy enough, the reason to put it in to Powershell is not so we can just have another way to test our connections.  Automation is the key here.  So what if we took this and combined it with another technique, getting a server collection from CMS?

$CMS='SHION'
$servers=@((dir "SQLSERVER:\SQLRegistration\Central Management Server Group\$CMS").Name)

$servers+=$cms
Test-SQLConnection -Instances $servers

Using this, we can quickly test the connection of all the servers in our CMS.  We can also check to see if any have started up recently, perhaps warning us of a restart of our SQL Services.  From here, it’s not a tremendous leap to load it into a database table for regular health checks.

Another tool for the toolbox

What’s great about these functions is that once I write it, I have a new tool I can use.  Initially I wrote this function so I can verify which servers in my active directory are actually SQL Servers (assuming the default port, of course).  As we can see here, though, the function can be used for a variety of purposes.



Making SQL Backups better with #Powershell

Jan 20th, 2015
by Mike Fal.
4 comments

SQL Server backups are a key part of any database administrator’s job and one of the first items that will get automated in an environment. In my career, I have seen a number of different approaches to this task, usually a combination of T-SQL and SQL Agent Jobs. When using these, you usually have two different approaches. The first is to create a single script to dynamically identify your databases and back them up serially. The second is to create multiple agent jobs, one for each database, that can execute in parallel, but must be created as static jobs.

Either approach presents us with some hurdles. The first enables us to dynamically handle adding databases to the server, but the backups must be executed serially. Serial backups can extend maintenance windows by not making efficient use of our resources. The second gives us the ability to run our backups in parallel, but leaves us with multiple jobs that are static and must be managed as new databases are added. Neither of these options are really ideal.

What if there was a third way?

Enter Powershell Jobs. While I usually don’t advocate database backups using Powershell (because they can be handled quite well with native T-SQL), I have come across a handy technique using Powershell Jobs and T-SQL to allow me to dynamically create backup statements and execute them in parallel. This allows me to find that intersection between minimal management and increased efficiency for my database backup management.

So what are Powershell Jobs?  They are a mechanism within Powershell for creating background jobs that can execute independent of the session that initiates them. Using this functionality, we can start multiple executions of any Powershell command in parallel, allowing them to run while other tasks execute. To find out more, you can read the documentation by running Get-Help about_Jobs or look them up on MSDN.

Start-Job is the key to this technique. To implement, I first use T-SQL code to get my databases for backup, much like I would when using pure T-SQL. Using this T-SQL, I will create an array of databases to be backed up and use that array to build a script block. This script block will contain a call to Invoke-SqlCmd for each backup statement, which can then be used with Start-Job to execute each backup job.

$dbs = Invoke-Sqlcmd -ServerInstance localhost -Database tempdb -Query "SELECT name FROM sys.databases WHERE database_id > 4"
$datestring =  (Get-Date -Format 'yyyyMMddHHmm')

foreach($db in $dbs.name){
    $dir = "C:\Backups\$db"
    if(!(Test-Path $dir)){New-Item -ItemType Directory -path $dir}

    $filename = "$db-$datestring.bak"
    $backup=Join-Path -Path $dir -ChildPath $filename
    $sql = "BACKUP DATABASE $db TO DISK = N'$backup'"
    $cmd = "Invoke-Sqlcmd -ServerInstance localhost -Database tempdb -Query `"$sql`" -QueryTimeout 6000;"
    $cmd += "Get-ChildItem $dir\*.bak| Where {`$_.LastWriteTime -lt (Get-Date).AddMinutes(-10)}|Remove-Item;"
    [scriptblock]$cmdblock = [ScriptBlock]::Create($cmd)
    Start-Job $cmdblock
}

In addition to using Powershell to create jobs, we also get some bonus features. For example, I can use Test-Path to validate my backup directories exist (and create them if they don’t).

(!(Test-Path $dir)){New-Item -ItemType Directory -path $dir}

Backup paths are big deal for SQL Server, because if that path doesn’t exist, we get an ugly backup error.  When using a T-SQL script for backups, administrators still need some additional step to create the backup directories. This is a task that is much easier using Powershell.
We can also leverage Powershell for deleting old backups by adding the following line:

$cmd += "Get-ChildItem $dir\*.bak| Where {`$_.LastWriteTime -lt (Get-Date).AddMinutes(-10)}|Remove-Item;"

Deleting files is something SQL Server is also particularly bad at. I’ve had a lot of sleepless nights that were the result of old backup files not being cleaned up. By leveraging this one line in the script block, the job will delete any full backups older than 10 minutes. We could change this window or be more elegant as our needs require, but the end result is that we only keep the most recent backup file.

What’s nice is that the script can be easily extended for log backups without a lot of retrofitting. I make four changes for this. The first is to filter our database query to ignore any databases in SIMPLE mode, as they can’t have their log files backed up.

$dbs = Invoke-Sqlcmd -ServerInstance localhost -Database tempdb -Query "SELECT name FROM sys.databases WHERE database_id > 4 AND recovery_model_desc != 'SIMPLE'"

The second is change the backup command from BACKUP DATABASE to BACKUP LOG.

$sql = "BACKUP LOG $db TO DISK = N'$backup'"

Next, I change the backup file extension from .bak to .trn, because I prefer to distinguish my backup file types in this manner.

$filename = "$db-$datestring.trn"

Finally I change the retention period for the delete step to 2 days, so I can keep transaction logs on disk in the event I need them for recovery.

$cmd += "Get-ChildItem $dir\*.trn| Where {`$_.LastWriteTime -lt (Get-Date).AddDays(-2)}|Remove-Item;"

The end result is this script, which works much like our full backup script:

The end result is this script, which works much like our full backup script:

$dbs = Invoke-Sqlcmd -ServerInstance localhost -Database tempdb -Query "SELECT name FROM sys.databases WHERE database_id > 4 AND recovery_model_desc != 'SIMPLE'"
$datestring =  (Get-Date -Format 'yyyyMMddHHmm')

foreach($db in $dbs.name){
    $dir = "C:\Backups\$db"
    if(!(Test-Path $dir)){New-Item -ItemType Directory -path $dir}

    $filename = "$db-$datestring.trn"
    $backup=Join-Path -Path $dir -ChildPath $filename
    $sql = "BACKUP LOG $db TO DISK = N'$backup'"
    $cmd = "Invoke-Sqlcmd -ServerInstance localhost -Database tempdb -Query `"$sql`" -QueryTimeout 6000;"
    $cmd += "Get-ChildItem $dir\*.trn| Where {`$_.LastWriteTime -lt (Get-Date).AddDays(-2)}|Remove-Item;"
    [scriptblock]$cmdblock = [ScriptBlock]::Create($cmd)
    Start-Job $cmdblock
}

So how do we use this in SQL Server? We can stick with the previous pattern of using SQL Server Agent Jobs. Since SQL Server 2008, Agent Jobs have supported a Powershell step. To implement that step, we would create our same backup job in the Agent as before, but now instead of creating a T-SQL step we can create a Powershell step and insert our script, like so:

MSF_AddJobStep_PoSHBackups

There is one additional piece of code we have to add to make it work, however. The way Agent Jobs operate is that once the script completes and our background jobs are initiated, the Agent Job step stops and closes our parent session. When this happens, the remote jobs we just kicked off get canceled and our backups don’t happen. We need to add a logic check to keep the Agent Job running until the background jobs are no longer running. This is simple and only requires the following code to accomplish our task:

$jobs = 1
while($jobs -gt 0){$jobs = (get-job | where {$_.State -eq 'Running'} | Measure-Object).Count}

With this in place, we can now schedule and run our backup task as we would have before, except now we have a more dynamic and more efficient Powershell script to do it with. We can also do the same with our log backup script as well.

Overall these are very basic scripts and could be enhanced, but the core functionality is what you should focus on. The emphasis is on making the best use of our tools and resources in the most efficient way possible. This approach is also nice for SQL Server administrators as the script is primarily a wrapper for T-SQL backup commands that we all know and love. For those SQL Server folks who are still getting their feet wet with Powershell, this is a very intuitive way to start using the syntax and get some quick bang-for-your-buck.



DSC – The Custom SQL Resource

Nov 20th, 2014
by Mike Fal.
No comments yet

Last post I gave the rundown of Desired State Configuration and how it worked, but I skipped over the “secret sauce” around SQL Server. Of course, that was the tease to get you to come back for this week’s post.  Let’s dig in to the process and see how we can use DSC to install SQL Server without ever having to log in to the box.

Installing the Resource

The first thing to understand is that your custom resource will be contained within a Powershell module.  This means it lives in your WindowsPowershell\Modules directory.  The structure of the resource is specific and requires a couple pieces:

  • <Folder – Your Resource Name>
    • Your Resource Name.psd1 (Powershell Data file describing the module)
    • Folder – DSCResources (Contains all resources in the module
      • Folder – Your Resource Name (folder containing your specific custom resource)
        • Your Resource Name schema file (descibes the resource)
        • Your Resource Name script

Now, if you’re using the Resource Designer toolkit, these will all get created for you.  I highly recommend doing that, because you miss one piece and you’ll be bashing your head against this for a week or so.  Ask me how I know.  :)

Another thing to setup is your execution policy.  As this is a custom script, the local server needs to it is trustworthy.  I set the execution policy to RemoteSigned for this (Set-ExecutionPolicy RemoteSigned).  If you don’t do this, you’ll get an invisible failure, where your configuration will fail but you will have no feedback on the reason.  Again, ask me how I know!

Custom Resource

When you actually create the resource script, you need three functions:

  • Get-TargetResource
  • Test-TargetResource
  • Set-TargetResource

Get-TargetResource is the function that will return the resource you’re checking for.  It returns a hash table to represent the key values of the resource.  Test-TargetResource is a boolean check, returning true if the resource exists, false if it does not.  Set-TargetResource does all the work, as it is the function that is called if the resource needs to be created.  You can have other internal functions if you want to further modularize your process, but these three must exist for DSC to work.  The internal operations must be written by you, but as long as the names and outputs are consistent you are set.

The other key piece is not in the resource itself, but up in the data file describing your module.  Within that file you need to have a GUID set for the module so that the DSC engine can reference it when it is installed on other machines.  I tripped up on this many times, so be careful.

cSqlInstall

VPn1q6NSo let’s talk about the resource I constructed.  As I said in my previous post, I was frustrated with the limitations of the Microsoft resource.  The biggest limitation was the inability to use a config file, which is pretty much how I do SQL installs now.  So that’s how I approached writing mine, leveraging the .ini file for most of the installation detail.

 The resource accepts the following parameters:

  • InstanceName – (required) The name of the instance you plan to install, MSSQLSERVER if you want the default.
  • InstallPath – (required) The UNC path for where the setup files are.
  • ConfigPath – (required) The UNC path for the config.ini file.
  • UpdateEnabled – Boolean, defaults to false.  If true, the setup will check for and attempt to install available SPs and CUs.
  • UpdatePath – If UpdateEnabled is true, this is the path where the update files reside.
  • MixedMode – Boolean, defaults to false.  If set to true, the install will set authentication to mixed mode and create ‘sa’ with a randomly generated password.

I’ve tried to keep the parameters to a minimum and allow for customization to happen within the the config file.  The biggest gap right now is that the service accounts and their passwords will be contained in plain text in that file.  Ideally, you’d use managed service accounts to get around this, but I still am working on setting those up.

We then look at the functions within the resource.  Get-TargetResource should return a hash table, so what will return from this resource is the InstanceName, InstallPath, and ConfigPath.  This is because these are the required parameters for the function, but really we only care about the InstanceName.   To get that, it’s a simple check of the services on the target machine to find a service with the desired InstanceName.  If we find it, it returns that name.  If we don’t, it returns NULL.

Test-TargetResource is a lot simpler.  Since we want a boolean, all we do is use Get-TargetResource to get the resource hash table.  Then we check the hash table’s InstanceName with the desired InstanceName.  If they match, we return true and indicate the resource exists.  If they don’t match, the resource doesn’t exist and we return false.

Set-TargetResource is fairly straightforward.  Using these arguments along with some default ones, the resource will build out a call to setup.exe.  Once this string is built, the resource will invoke the setup.exe call just like any other unattended install.  After the setup run is complete, the script finds the most recent Summary.txt file and checks it to see if the installation was successful.  If the install was successful, it restarts the server and we’re done.  Otherwise, it will report an error.

Work To Be Done

There’s still some other gaps in the code that I will be working on.  First, it assumes the local machine account that the Local Configuration Manager runs under has permissions to the file shares for the SQL install.  If your environment is more locked down, this could be a problem.  There’s also the issue of logging that still needs to be addressed, because the current logging is not useful.  All of these items (and others that come up) will be addressed eventually.

I also plan to add other resources to this.  I’d like to get one to handle service pack and cumulative updates outside of the SQL install so that you can use it to keep everything to the correct version as well.  I’ve posted the code to my GitHub repository  As with the other scripts there, it is a work in progress and can use a fair amount of improvement.  If you have any suggestions or recommendations for this code, I’d love to hear of them.

Desired State Configuration

Nov 11th, 2014
by Mike Fal.
5 comments

As a DBA, I’m always concerned with consistency in my environments.  From maintenance to code deploy, I want things to be done the same way every single time.  Usually this is a process question, making sure that you harness the power of check lists and repeatable steps.  You then make it better by wrapping your process in scripts and leveraging other tools.

When I go into a new shop, one of the first things I usually have to do is bolt down the server build process.  Most environments will manually build servers, where an engineer goes in and manually installs the appropriate packages and features.  Then a DBA will install SQL Server, adding maintenance jobs and deploying admin databases.  Even with building scripts and sketching out steps, there will be a lot of spots where configurations can be missed and the process can breakdown.  Fortunately, we now have a tool in Powershell that helps us solve these problems.

You might have heard of Chef or Puppet.  Well, now Powershell has its own answer for managing server configurations:  Deired State Configuration or DSC.  DSC is an engine included in Windows Management Framework 4 that allows folks like us to create declarative configurations for our servers which can then be acted on by our servers.  This brings the next level of automation, infrastructure as code, to our servers.

How does it work?

The process for DSC relies on two things:  Your configuration and your resources.  You create a configuration, which specifies the resources you want (or don’t want).  You then use DSC via Powershell to deploy the configuration to a target server, which then runs the configuration through a Local Configuration Manager (LCM) to check those resources.  If those resources are present, the LCM takes note and moves on.  If the resources is not present as declared in the configuration, the LCM will then attempt to install or configure the resource as specified in the configuration file.

Simple, eh?  It’s meant to be that way.  The idea is to have an intuitive way to deploy servers in a standardized method, whether it’s 1 or 100 (or 1000 for that matter).  It’s also meant to be flexible.  DSC ships with some basic resources (things like File, Windows Feature, and Registry Key), but because it’s built in Powershell you have the ability to create your own resources.  This means the sky’s the limit with what you can do.

What do I need?

Let’s dig a little more into the detail of how DSC works.  First off, if we want to use DSC, we need a couple things:

  • Windows Management Framework 4.0 on all machines involved
  • Permissions to run custom scripts on the targets (if we’re using custom resources, more on this later)
  • Custom resources need to be deployed to the target ahead of deploying the configuration

Note I call out some requirements around custom resources.  These are scripts you write yourself.  We’ll talk about those in a bit, just file these bits away for later reference.

Now, the configuration.  This is a configuration I created for deploying a base installation of SQL Server, so the resources are designed around that.  Here’s the script:

Configuration SQLServer{
   param([string[]] $ComputerName)

   Import-DscResource -Module cSQLResources

   Node $ComputerName {

       File DataDir{
           DestinationPath = 'C:\DBFiles\Data'
           Type = 'Directory'
           Ensure = 'Present'
       }

       File LogDir{
           DestinationPath = 'C:\DBFiles\Log'
           Type = 'Directory'
           Ensure = 'Present'
       }

       File TempDBDir{
           DestinationPath = 'C:\DBFiles\TempDB'
           Type = 'Directory'
           Ensure = 'Present'
       }

       WindowsFeature NETCore{
           Name = 'NET-Framework-Core'
           Ensure = 'Present'
           IncludeAllSubFeature = $true
           Source = 'D:\sources\sxs'
       }

       cSQLInstall SQLInstall{
           InstanceName = 'MSSQLSERVER'
           InstallPath = '\\HIKARU\InstallFiles\SQL2014'
           ConfigPath = '\\HIKARU\InstallFiles\SQL2014\SQL2014_Core_DSC.ini'
           UpdateEnabled = $true
           UpdatePath = '\\HIKARU\InstallFiles\SQL2014\Updates'
           DependsOn = @("[File]DataDir","[File]LogDir","[File]TempDBDir","[WindowsFeature]NETCore")
       }
   }
}

SQLServer -ComputerName MISA

 This looks like (and is) a Powershell function, just a special one using the ‘Configuration’ key word.  When you call the function, it will create a special file for the Node(s) declared within the configuration, a Managed Object Format (.mof) file.  This is a standardized file type that defines our configuration.  Note, this file is not Windows specific, as the design for DSC is to ultimately be used with non-Windows OS machines and hardware.  It’s the .mof that will be deployed to our target machines and acted upon by the LCM.

 Next up in the file, the Node.  This is the target for our configuration.  You’ll see that in the script, it is parameterized as an array, meaning we can run the script for as many different targets as we want, we just have to pass the array of machine names we want.  We could also have multiple nodes within the configuration script, if we wanted this configuration to have different types of targets.

 Within the Node section, we have our resource declarations.  This is the meat, the pieces of code that identify what needs to be configured.  The nice thing is reading them is fairly intuitive.  Let’s look first at the File resource.  These three declarations are for my default directories.  I have to declare specify that it is a directory (the Type), the path (the DestinationPath), and that is must exist (Ensure = Present).  As an aside, I could get a lot more involved with the File resource, copying things from a net share down to the target if I wanted, things like config files or web source directories.

 The Windows Feature resource is also easy to understand.  Using this, I can make sure certain Windows features exist on the target.  Since I’m using this particular configuration to install SQL Server, I’ve declared that I want the Net-Framework-Core feature installed.  This is a prerequisite for installing SQL Server.

 Finally, I have the cSQLInstall resource.  I’m going to save the explanation of this detailed custom resource for the next blog post, but I want to call attention to the DependsOn argument.  With this, we can declare prerequisites for our resources.  This give us some additional resilience for our install, allowing us to create some precedence within the configuration.

Where do I run it from?

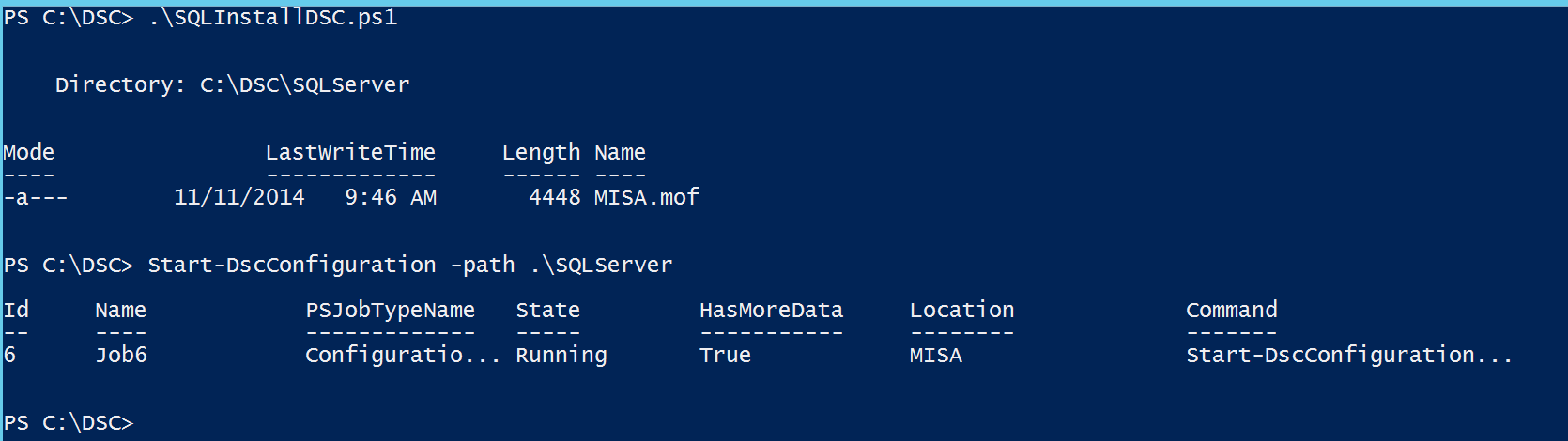

Once you have the configuration written, you simply need to run it.  It will create a directory named after your configuration and contain a .mof file for each node within it.  The next step is to use the Start-DscConfiguration cmdlet and call the path where all our files live.  After that, a Powershell background job kicks off and DSC handles the rest.

Start-DSCConfiguration

Any not cool parts?

So not everything is unicorns and rainbows with DSC.  First off, it’s a stone cold female canine to debug, because it’s difficult to capture any logging around it.  Many times I would try and run something and it would fail before it even entered my script.  Most of this was around my custom stuff, but it was extremely frustrating.

As for the custom scripts, DSC is still fairly immature.  Microsoft has some resource kits out there, but most of the resources in there are pretty weak.  The SQL resource provided has several gaps, such as being designed specifically for SQL 2012 and not being able to use .ini files.  So you’re probably going to write resources on your own, which has a LOT of gotchas.  You’re going to want to start with the Resource Designer Tool, which will solve most of the gotchas for you.

 Also, since it’s immature, there’s not a lot written about it.  Especially for SQL Server.  Powershell.org and MSDN are going to be your best bets for help, but this is a brave new world.  Be prepared to walk a fair amount of the way on your own.  If you want to start, go with this book from Don Jones.

 Infrastructure as code is the future.  DSC gives us intuitive tools with a straightforward interface (once your resources are written, of course) to make our environments more consistent and easier to manage.  I’m super excited about this feature and will be blogging more about it in the weeks to come.  Definitely stay tuned for next week, where I’ll walk through my custom SQL Server resource (and tell you where you can get the code yourself).  Also, hit me up if you’ve got questions or any experiences of your own around DSC, I’d love to hear about them.

RestoreAutomation #Powershell Module

Jul 22nd, 2014
by Mike Fal.
4 comments

When you become involved with the SQL community, you see a lot of great tools contributed to make life easier for the rest of us.  The function of these tools range greatly, from helping to analyze your system state, collect data about your enterprise, or performing regular maintenance.  I’ve used many of these tools over the years and can’t imagine being a DBA without them.  Well, now it’s time to give back.

A little over two years ago, I posted a Powershell script for building database restores.  It has been very handy and I’ve used it a lot over the years.  However, it always felt like it could use some polish.  I began work a few months ago to add that polish and was able to debut this output at SQL Saturday Sacramento a few weeks ago.  Now I want to share that same output with you here on my blog.

RestoreAutomation.psm1

I’ve compiled the previous Powershell script into a module, making it easily transportable and allowing DBAs to use it more effectively as a tool.  No messing with script files, all you need to do to use it is download the module file and then import it into your Powershell session.  The file is now available on my new GitHub repository and can be accessed via the following links:

https://github.com/MikeFal/PowerShell/blob/master/RestoreAutomation.psm1
https://raw.githubusercontent.com/MikeFal/PowerShell/master/RestoreAutomation.psm1 (raw version)

To install the module, follow these steps:

  1. Open one of your default Powershell module locations ($env:PSModulePath).  I recommend your user specific one.
  2. Create a folder named RestoreAutomation in that locatoin
  3. Place the RestoreAutomation.psm1 file in the new folder.

Full Microsoft install instructions can be found here.

To load the module once you’ve installed it, just open a Powershell session and enter Import-Module RestoreAutomation.  After that, you can see the available functions by using Get-Command -Module RestoreAutomation, which will provide the following list:

CommandType     Name                ModuleName
-----------     ----                ----------
Function        Get-DBCCCheckDB     RestoreAutomation
Function        Get-Header          RestoreAutomation
Function        Get-RestoreObject   RestoreAutomation
Function        New-Restore         RestoreAutomation
Function        Sync-DBUsers        RestoreAutomation

Using the module

While five functions are listed, two of them are internal and used by the core restore process to generate the necessary code.  I’ll cover the primary three functions here, but I have made full use of Powershell’s comment based help, so you can use Get-Help on these functions at any time to get information on how to use them.

New-Restore
This is the core functionality that was created from my initial script.  When you run this function, it will create a .sql script in your Documents folder to restore the associated files.  The function takes a directory path and then search that directory path for all backup files within it, ordering them appropriately (latest full, then latest differential, then the right sequence of transaction logs).

You’ll see that the function has a lot of parameters.  The only two required are:

  • dir – The directory where the necessary backup files live
  • server – A SQL Server instance where the script generation commands will be run (but not necessarily restored to)

I will not cover the optional parameters in detail here, but review Get-Help New-Restore -full for a full listing of the parameters and what they do.

The function makes the following assumptions:

  • All the backup files in the directory belong to one database only.
  • Backup file types are defined by extension (.bak for full, .dff for differential, and .trn for transaction log).
  • No striped backup files, meaning a database backup will be contained on only one file.
  • No backup sets, meaning a backup file only contains a single database backup.

To use the function, simply get a directory of backup files and run a command similar to:

New-Restore -dir “X:\backups\db” -server “localhost”

Then, look in your Documents folder for a restore_db.sql file.  This will be your database restore script.

If you want to test drive it yourself using a dummy database, I’ve provided a full demo script and files for download.

Sync-DBUsers
This function I added to help me with database migrations.  Often, I’ll migrate a database via backup and restore.  Afterwards I always need to clean up the orphan logins.  This function is a wrapper for SQL queries that I use to do this, providing me an easy to use interface for managing the process.

The function accepts only two parameters:

  • server – The SQL instance that the database resides on
  • database – Database that contains users you wish to correct

To run the function, just call your server and database name:

Sync-DBUsers -server “localhost” -database “restoredemo”

The function will then find all orphaned users and correct them.  Any orphans it can not find corresponding logins for, it will return as an output list for review and correction.

Get-DBCCCheckDB
When building out my automated restore process, I always wanted to do a DBCC CHECKDB on the restored database to validate everything was ok.  So I wrote this function in order to give me a manageable interface for the process.  The function will then run a DBCC CHECKDB with PHYSICAL_ONLY on my target database and return the results.

The function has three parameters:

  • server – The SQL instance that the database resides on
  • database – Database that you want to check
  • Full – Switch parameter.  If used, the function will execute a full DBCC CHECKDB.  If omitted, it will only perform a check with PHYSICAL_ONLY

To use the function, call the server and database name:

Get-DBCCCheckDB -server “localhost” -database “restoredemo”

The output will be a data table of the check results.

Only the beginning

Hopefully this module can help you as much as it has helped me.  The point is to use this as a tool to facilitate other tasks.  Many of these tasks I will provide examples of over the next month or so, to demonstrate how you can leverage this in your own environment.

I already have a list of enhancements that I plan to add.  I expect that as folks out there review it and play with it, I’ll get more.  Please do not hesitate to post suggestions and comments to the GitHub repository.  The idea, as with many of these other tools, is to build a reliable offering that other DBAs can use in their day to day jobs to make things easier and allow them to work on more important tasks and projects.

TIL: Broken Log Chains

Apr 23rd, 2014
by Mike Fal.
2 comments

Something that always bites me in the butt from time to time is restoring a database in full recovery model and forgetting to do a full right away.  Then I find out shortly when my log backups start failing and spamming me with error messages.  I’m fairly certain this has happened to you, as well.  It’s an easy thing to forget, especially when you’re dealing with non-critical databases.

Humans are typically bad at remembering things.  That’s why we make task lists, have calendar reminders, document processes, and script for automation.  We either have to remind ourselves to do something or (my preference) build something that’s smart enough to correct our oversight.  So when I found a way to do this with broken log chains, I was pretty happy.

The key was a new dynamic management view (DMV) I discovered.  Most people who know me know I love the DMVs and all the information they can provide.  My new discovery is the sys.database_recovery_status view, which provides recovery info for all the databases.  The key field is the last_log_backup_lsn field, which will be NULL if the log chain has somehow been broken.

What’s cool about this is now we have a programmatic way we can use to validate if a full backup needs to be performed.  By adding a quick check to a log backup script, we can make sure we never have a broken log chain.  A quick and dirty way would be:

if (select last_log_backup_lsn from sys.database_recovery_status where database_id = db_id(‘foo’)) is NULL
begin
    backup database [foo] to disk=<<path to full backup>>
end

backup log [foo] to disk=<<path to log backup>>

This is obviously the most simple approach you can use, but the pattern is the important piece.  By combining this with your standard backup scripts (please tell me you have standard backup scripts), you can always ensure that you never get an error because you forgot a full backup.

Because your script will remember for you.



A PoSH way to skin the cat

Mar 3rd, 2014
by Mike Fal.
1 comment

Today my friend John Morehouse(@SqlrUs) posted a handy T-SQL script to configure your SQL Server memory based on some rules provided by Jonathan Kehayias(@SQLPoolBoy).  This is a great script and helps automate a lot of the work a DBA needs to do when setting up a new instance. Hopefully, you know by now about my passion for automating and standardization.  However, when reading John’s post, I had the following internal conversation:

“Wow, self, John’s got a neat little script here.”

“Yeah, but T-SQL is so passé.  Everyone does it.  Plus, not sure how easily we could add that into a server deployment script if we wanted total hands-off-ness.”

“Self, I know what you mean.  Nothing wrong with it, it just doesn’t fit my own particular….oh…particular….”

“Idiom?“

“Yes!  Idiom!  Hrmmm…how about a Powershell script?”

“A Powershell script?  Brilliant!”

And so I sat down and cranked out the following script, which essentially does what John’s script does, just using Powershell.

</pre>
<#
.SYNOPSIS
 Configures a SQL Server instance per the Jonathan Kehayias' guidelines.
.DESCRIPTION
 This script will configure your SQL Server instance per the guidelines
 found in Jonathan Kehayias' blog post: http://www.sqlskills.com/blogs/jonathan/how-much-memory-does-my-sql-server-actually-need/
 The rules are:
 - 1GB for initial OS reserve
 - +1GB per 4GB server RAM up to 16GB
 - +1GB per 8GB server RAM above 16
.PARAMETER
 -instance SQL instance name, i.e. localhost\SQL2012, DBASERVER01
 -apply Switch parameter, call if you want to actually apply the changes. Otherwise, a report will be produced.
.EXAMPLE
 Configure-SQLMemory -instance DBASERVER01 -apply
#>

param([parameter(Mandatory=$true)][string] $instance
 , [Switch] $apply
 )

#load SMO
[System.Reflection.Assembly]::LoadWithPartialName('Microsoft.SqlServer.SMO') | out-null

if($instance.Contains("\")){
 $sqlhost = $instance.Split("\") | Select -First 1
 }
else{
 $sqlhost = $instance
 }

#set memory variables
$totalmem = (gwmi Win32_ComputerSystem -computername $sqlhost).TotalPhysicalMemory/1GB
$sqlmem = [math]::floor($totalmem)

#calculate memory
while($totalmem -gt 0){
 if($totalmem -gt 16){
 $sqlmem -= [math]::floor(($totalmem-16)/8)
 $totalmem=16
 }
 elseif($totalmem -gt 4){
 $sqlmem -= [math]::floor(($totalmem)/4)
 $totalmem = 4
 }
 else{
 $sqlmem -= 1
 $totalmem = 0
 }
}

#if not in debug mode, alter config. Otherwise report current and new values.
$srv = New-Object -TypeName Microsoft.SqlServer.Management.Smo.Server $instance
 "Instance:" + $instance
 "Max Memory:" + $srv.Configuration.MaxServerMemory.ConfigValue/1024 + " -> " + $sqlmem
 "Min Memory:" + $srv.Configuration.MinServerMemory.ConfigValue/1024 + " -> " + $sqlmem/2
if($apply){
 $srv.Configuration.MaxServerMemory.ConfigValue = $sqlmem * 1024
 $srv.Configuration.MinServerMemory.ConfigValue = $sqlmem/2 * 1024
 $srv.Configuration.Alter()
 "Configuration Complete!"
 }
<pre>

Now it should be noted that I’m not going to tell you which of these scripts are “better”. Neither is, really, they’re just different ways of approaching the problem. And that’s the fun of it. When working in technology, cats can be skinned in multiple ways, we just have to use something. Whether it’s T-SQL, Powershell, C#, or some other thing, the point is that you want scripts to automate your work.

What was also cool about this was it gave me another exercise to practice Powershell.  After all, practice makes perfect and when learning something, any excuse to make me use it is good.  John and I actually had a conversation shortly after I wrote the script about these sort of opportunities, and we’ll continue to look for ways to challenge each other for learning.

Edit:  Well, that was embarrassing.  Amazing how sometimes you can get the math little screwy.  I’ve updated this script as of 9:44 PM MST to correct me having the math backwards.  If you grabbed/reviewed this script before hand, please make sure up grab the updated version.

The Moving Van

Aug 15th, 2013
by Mike Fal.
No comments yet

A problem DBAs commonly face is moving database files around, especially when we’re trying to manage space on a drive.  I know that I’ve had to do it and, when you have a database instance with hundreds of databases, you need an automated way to manage this.  Recently, someone on DBA Stackexchange had this specific problem and I was able to provide a Powershell script that I’ve used in the past to manage this problem.  And when I haven’t blogged for a while, a good way back into it is to share a Powershell script.  Mostly because it’s easy.  :)

First, let me talk about a pattern I commonly use.  A lot of times, I could write a single script to take an action, but instead I build a script to write a script.  The main reason I do this is that it’s very hard, especially with many of our administrative tasks, to write a one-size-fits-all process.  So instead, I have a tool that gets me 90% of the way which I can then tweak or alter that script to address that final 10% to fit that specific need.

That’s what this script is doing.  It doesn’t perform the actual file moves itself, but writes out a script that will execute those files moves.  It’s fairly generic, creating a script that moves all the database files from their current location (wherever that may be) to two common directories: data and log. It’s rare that you would move all your database files in this fashion, but you can edit the generated script to suit your specific situation.

This script makes use of the techniques detailed here by Ben Miller(@dbaduck) with one significant exception. I’ve found that the .Offline() method for databases is very unreliable because you’re basically executing your normal “ALTER DATABASE [foo] SET OFFLINE;”. The main problem with this command is it has to wait for all connections to close gracefully before it can proceed, something that doesn’t happen to frequently. I prefer to use “ALTER DATABASE [foo] SET OFFLINE WITH ROLLBACK IMMEDIATE;” because it forces all connections to close and open transactions to rollback, no waiting involved. Since the SMO methods don’t have an option for that,  I call the SQL using the Invoke-SQLCmd cmdlet. I find this is a much cleaner option for my script.

Specifically, the script accepts 4 parameters:

  • $newdata – New data file path

  • $newlog – New log file path

  • $instance – SQL instance you want to move files for (defaults to local)

  • $outputfile – Output file name (defaults to Documents, FileMover.ps1)

When you run it, it will spit out a FileMover.ps1 script to you Documents folder (though, using that last parameter, you can change the output location and name).  This FileMover.ps1 will be the script you can then edit to suit your specific needs.  The script is below, but you can also download it here.

<#
.SYNOPSIS
   Builds a Powershell script for moving many database files from one
	 set of directories to another.
.DESCRIPTION
   Used to generate a Powershell script for moving many database files
	 from one location to another.  This will typically be used with a
	 large number of databases that need to be relocated.  Caveats for
	 this script include:
	 		-Destination for all files will be the same.
			-User that runs the script must have access to source and destination locations
			-This uses the 2008 R2 version of the SMO.

	The script generates a FileMover.ps1 script (by default in My
	Documents).  The reason for generating a separate script is so
	specific configurations can be edited/updated before actually
	execyting the move.

.PARAMETER <paramName>
   instance - Instance owning the databases to be moved
	 newdata - New data file location, no trailing '\'.  example: "C:\DBFiles\Data"
	 newlog - New log file location, no trailing '\'.  example: "C:\DBFiles\Log"
	 $outputfile - Full path and name of output file.  By default, FileMover.ps1 in My Documents.

.EXAMPLE
   .\Build-FileMover.ps1 -newdata "C:\DBFiles\Data" -newlog "C:\DBFiles\Log"
#>

param([parameter(Mandatory=$true)][string] $newdata,
			[parameter(Mandatory=$true)][string] $newlog,
			[string] $instance="localhost",
      [string] $outputfile=([Environment]::GetFolderPath("MyDocuments"))+"`\FileMover.ps1")

#load SMO
Add-PSSnapin SqlServerCmdletSnapin100
Add-PSSnapin SqlServerProviderSnapin100
[System.Reflection.Assembly]::LoadWithPartialName('Microsoft.SqlServer.SMO') | out-null

#Create server object and output filename
$server = New-Object -TypeName Microsoft.SqlServer.Management.Smo.Server $instance

#get your databases
$db_list=$server.Databases

#build initial script components
"Add-PSSnapin SqlServerCmdletSnapin100" > $outputfile
"Add-PSSnapin SqlServerProviderSnapin100" >> $outputfile
"[System.Reflection.Assembly]::LoadWithPartialName('Microsoft.SqlServer.SMO') `"$instance`" | out-null" >> $outputfile
"`$server = New-Object -TypeName Microsoft.SqlServer.Management.Smo.Server " >> $outputfile

foreach($db_build in $db_list)
{
	#only process user databases
	if(!($db_build.IsSystemObject))
	{
		#script out all the file moves
		"#----------------------------------------------------------------------" >> $outputfile
		"`$db=`$server.Databases[`""+$db_build.Name+"`"]" >> $outputfile

		$dbchange = @()
		$robocpy =@()
		foreach ($fg in $db_build.Filegroups)
		{
			foreach($file in $fg.Files)
			{
				$shortfile=$file.Filename.Substring($file.Filename.LastIndexOf('\')+1)
				$oldloc=$file.Filename.Substring(0,$file.Filename.LastIndexOf('\'))
				$dbchange+="`$db.FileGroups[`""+$fg.Name+"`"].Files[`""+$file.Name+"`"].Filename=`"$newdata`\"+$shortfile+"`""
				$robocpy+="ROBOCOPY `"$oldloc`" `"$newdata`" $shortfile /copyall /mov"

			}
		}

		foreach($logfile in $db_build.LogFiles)
		{
			$shortfile=$logfile.Filename.Substring($logfile.Filename.LastIndexOf('\')+1)
			$oldloc=$logfile.Filename.Substring(0,$logfile.Filename.LastIndexOf('\'))
			$dbchange+="`$db.LogFiles[`""+$logfile.Name+"`"].Filename=`"$newlog`\"+$shortfile+"`""
			$robocpy+="ROBOCOPY `"$oldloc`" `"$newlog`" $shortfile"
		}

		$dbchange+="`$db.Alter()"
		$dbchange+="Invoke-Sqlcmd -Query `"ALTER DATABASE ["+$db_build.Name+"] SET OFFLINE WITH ROLLBACK IMMEDIATE;`" -ServerInstance `"$instance`" -Database `"master`""

		$dbchange >> $outputfile
		$robocpy >> $outputfile

		"Invoke-Sqlcmd -Query `"ALTER DATABASE ["+$db_build.Name+"] SET ONLINE;`" -ServerInstance `"$instance`" -Database `"master`""  >> $outputfile
	}
}

Server Inventories

Apr 17th, 2013
by Mike Fal.
7 comments

Ok, I’ve been promising this to people for a while, time to get at it.  Brace yourself for a long one.

 As enterprise DBA’s, we usually have many servers to manage.  Whether it’s around ten, a hundred, or a thousand (or more!), tracking this manually is a bear.  However, there are still many shops maintain convoluted spreadsheets and other manual documentation to track their inventory.  Manual sucks.  As John Sansom(@SQLBrit) says, the best DBAs automate everything, including their server inventories.

 There’s a lot of approaches and third party tools you can use for your own environment.  In my mind, I’m totally cool with spending the money on a third party tool because of the depth they can provide in my tracking and monitoring.  A lot of times, though, we might not have access to those tools or we may need more information than those tools provide.  It’s at this point we sit down at our keyboard, crack our fingers, and start banging out some code.  Of course, the code I started banging out was Powershell (shocking, I know!).

 I didn’t start from scratch, though.  When putting my own script together (which we’ll get to later), I found two great resources that got me about 80% of the way:

 Allen White(@SQLRunr) – Let PowerShell do an Inventory of your Servers
Colleen Morrow(@ClevelandDBA) – Building A SQL Server Inventory

These are both great resources that will get you started, but I needed a little more.  The biggest challenge I had was a need to poll cluster information and collect SQL instance information separate from my machine information.  I also wanted to do some consolidation of my data sets.  So while I borrowed heavily from both Allen and Colleen, but then molded it to my own purposes.

Process

Before we dig into the code, I first want to touch on the collection process and how I handle it.  It’s not complex, but code doesn’t make sense until you understand the “why” of the different components.

What I’m collecting

  • SQL Instance information – Whether it’s an instance living on a cluster node, a physical stand alone, or a VM host, I want the SQL Instance without really caring about the machine it lives on.  At least not meshed in directly with the machine, though I DO collect the physical host name so I can identify which machine information I need.

  • Physical Machine information – Since I’m not tying the machine info directly with the SQL Instance collection, I want the physical information for the servers my instances live on.  This is where I get everything that isn’t tied directly to the SQL Instance.

How I’m collecting it

  • I’ve got 4 tables, 2 live tables and 2 stage tables, that I use for the collection.  Nothing out of the ordinary, but there’s an instance table with a stage table and a machine table with a stage table.

  • I use a Powershell script to perform the collection itself.  It uses instance table as its primary driver, where the idea is that I provide the initial population of instance names to track into the table and the inventory process will fully populate the rest of the information.

  • When the Powershell scripts complete, there is a stored procedure it executes to load data from the stage tables into the live tables.  The load is simple, where the instance table is updated with data from the stage and the machine information is deleted/replaced.

  • The Powershell script is run by a SQL Agent job running under a specific monitoring Active Directory account created as a credential in SQL Server.  The gotcha here is that the monitoring account needs domain access to the clusters and machines it’s going to be querying.

The Code

I won’t list the full scripts here, but you can download and review them here:

SQL Objects
Powershell script

 Let’s first talk about the dependencies:

  • The SMO, so you’re going to need to have either your script or your profile load the 2008 snap-ins or import the 2012 sqlps module.

  • Chad Miller’s Out-DataTable and Write-DataTable (I combined them into one file, DataTables.ps1).

  • The FailOverClusters module, part of the Remote Admin pack if you’re not running the code on a machine with the Windows Server OS, part of the Fail Over Cluster components if you are.

There are two key functions I use, Get-Instance to gather the SQL instance information and Get-Machine to gather the machine information:

#Collects and returns SQL Instance information
function Get-Instance([string]$instcoll,[int]$id,[string]$name)
{
try
{
	$smo = new-object ('Microsoft.SqlServer.Management.Smo.Server') $name
	$sname = $smo.NetName
	$iname = $smo.InstanceName
	if($iname.Length -eq 0 -or $iname -eq $null) { $iname = "MSSQLSERVER" }

	$managedcomp = new-object ('Microsoft.SqlServer.Management.Smo.WMI.ManagedComputer') $sname
	$output = New-Object System.Object

	$port = $managedcomp.ServerInstances[$iname].ServerProtocols["Tcp"].IPAddresses["IPAll"].IPAddressProperties["TcpPort"].Value
	$ip = (Test-Connection $sname -count 1).IPV4Address.ToString()

	$output | Add-Member -type NoteProperty -name InstanceId -value $id
	$output | Add-Member -type NoteProperty -name SQLVersion -value $smo.VersionString
	$output | Add-Member -type NoteProperty -name SQLVersionDesc -value $smo.ProductLevel
	$output | Add-Member -type NoteProperty -name SQLEdition -value $smo.Edition
	$output | Add-Member -type NoteProperty -name MemoryMinMB -value $smo.Configuration.MinServerMemory.RunValue
	$output | Add-Member -type NoteProperty -name MemoryMaxMB -value $smo.Configuration.MaxServerMemory.RunValue
	$output | Add-Member -type NoteProperty -name MAXDOPVal -value $smo.Configuration.MaxDegreeOfParallelism.RunValue
	$output | Add-Member -type NoteProperty -name IP -value $ip
	$output | Add-Member -type NoteProperty -name Port -value $port
	$output | Add-Member -type NoteProperty -name PhysicalHost -value $smo.ComputerNamePhysicalNetBIOS
	return $output
}
catch
{
	write-host "Error collecting $name"
	return $null
}
}#Get-Instance

#Get host machine information via WMI
function Get-Machine([string]$name,[string]$clst)
{
 try
{
	$comp = gwmi Win32_ComputerSystem -Computer $name | select Model,Manufacturer,TotalPhysicalMemory
	$proc = gwmi Win32_Processor -Computer $name | select NumberOfLogicalProcessors,MaxClockSpeed
	$os = gwmi Win32_OperatingSystem -Computer $name | select OSArchitecture,Name,Version,ServicePackMajorVersion,ServicePackMinorVersion

	$output = New-Object System.Object

	$output | Add-Member -type NoteProperty -name MachineName -value $name
	$output | Add-Member -type NoteProperty -name Model -value $comp.Model
	$output | Add-Member -type NoteProperty -name Manufacturer -value $comp.Manufacturer
	$output | Add-Member -type NoteProperty -name Architechture -value $os.OSArchitecture
	$output | Add-Member -type NoteProperty -name PhysicalCPUs -value $(if(!$proc.Length){"1"}else{$proc.Length})
	$output | Add-Member -type NoteProperty -name LogicalCPUs -value ($proc | Measure-Object NumberOfLogicalProcessors -sum).Sum
	$output | Add-Member -type NoteProperty -name CPUSpeed -value ($proc | Measure-Object MaxClockSpeed -max).Maximum
	$output | Add-Member -type NoteProperty -name MaxMemory -value ($comp.TotalPhysicalMemory/1MB)
	$output | Add-Member -type NoteProperty -name OSName -value $os.name.split("|")[0]
	$output | Add-Member -type NoteProperty -name OsVersion -value $os.Version
	$SPMaj = $os.ServicePackMajorVersion
	$SPMin = $os.ServicePackMinorVersion
	$output | Add-Member -type NoteProperty -name SPVersion -value "$SPMaj.$SPMin"
	$output | Add-Member -type NoteProperty -name Cluster -value $clst

	return $output
}
catch
{
	write-host "Error collecting $name"
	return $null
}
}#Get-Machine

Both leverage the SMO and the WMI to get relevant info.  I’ll let you sort through the individual elements I’m pulling, it’s fairly standard config info.  Data gathering, because I think in terms of tables, is a collection of objects that are essentially rows.  I append each new object with all the appropriate properties to a larger collection, then use Write-Datatable to push that data directly into the related stage table.

Look at the entire script for my full process.  I’ve been pretty happy with it and it’s been chugging away in my environments now for about 8-9 months without a whole lot of interaction from me.  If we stand up a new server, then I just pop that name in the instance table, run the job, and everything gets updated.  What made me most proud was that we had a recent meeting with a new VP and pulled up the SSRS report built off of this information to give him an idea of what our environments.  His comment was “This is the most documentation I’ve seen since I’ve got here.”  The beauty is that it was provided without a whole lot of manual maintenance on my part.

This is very much an evolving work on my part, but hopefully gives you some insight into how I manage my environments.  I’ve still got lots of ideas on improvements, including automatic population (or other use) of Central Management Server.  If you have any ideas on how this can be improved, I’d love to hear them.

← Earlier Posts Newer Posts →
